GDi Fuel Pumps

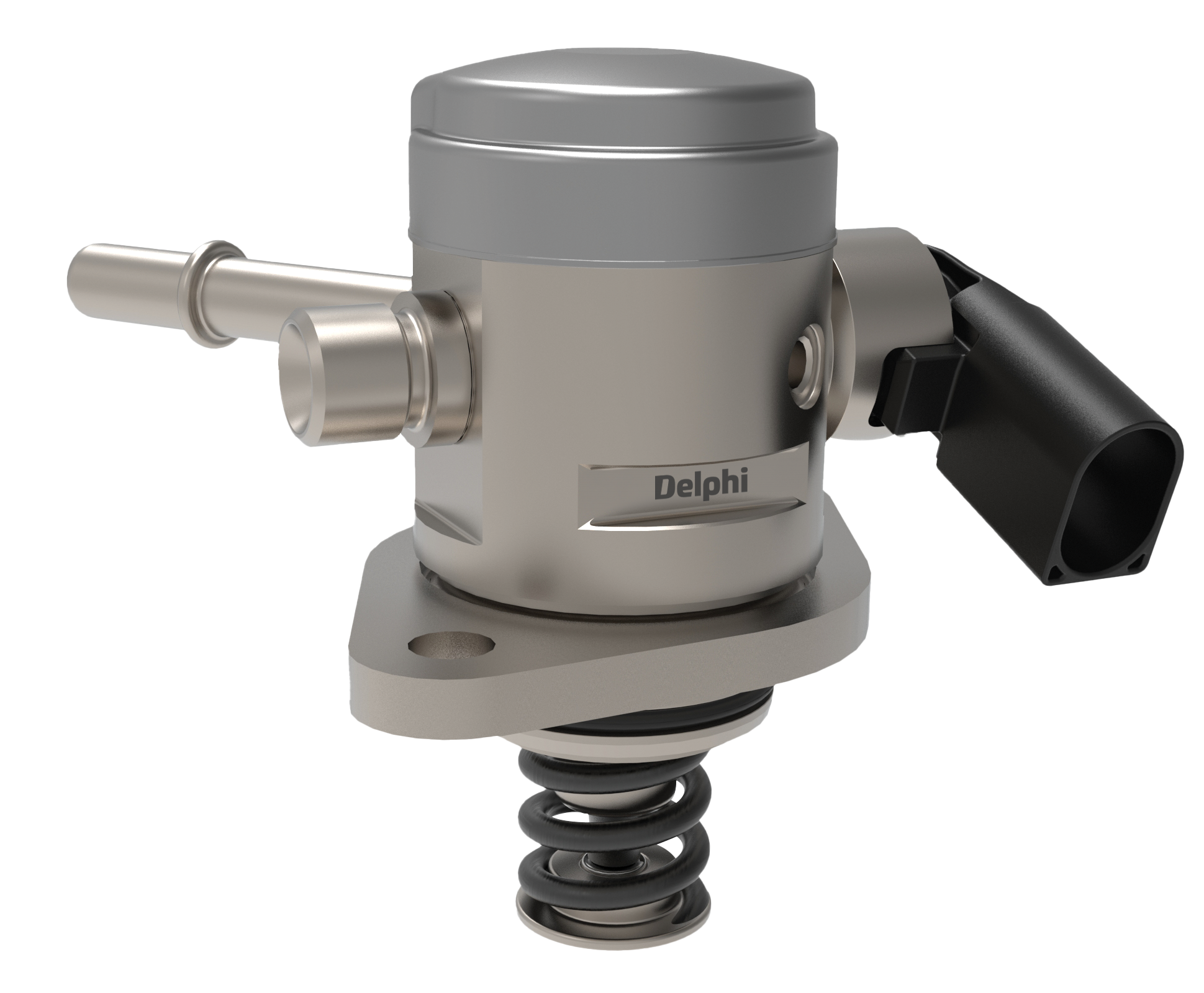

The Delphi pump is an engine driven single piston fuel pump
providing high pressure for GDi engine applications. It exists
in 2 versions, at 350bar and 500+bar, to cover the different
market needs.
Product Information
-
Features
- Virtually eliminates Plunger/Seal leak
- Cranking pressure rise improved
- Efficiency improved, particularly at low rpm
- Durable in various run environments
- Allows for pump/cam downsizing
-
Benefits
- 500+bar for compliance with most stringent emissions regulations
- Packaging flexibility
- Corrosive fuel robustness – DLC coated IV assembly & PRV Seat, ceramic ball
- Fuel compatibility E0 – E100, M15
- The pump family offers full range of plunger sizes; 6, 7, 8mm up to 600bar, 10mm up to 350bar, 9mm up to 500bar
- GFP2 and Plunger Ring Seal (PRS) is the most efficient GDI pump in the market
- Low mass – approx. 720 grams
- Low pressure pulsations – due to different accumulator options
- Benchmark noise level: < 53 dB-A (750erpm, 5MPa)
- In production since 2016 at 350bar, SOP in 2025 at 500bar
